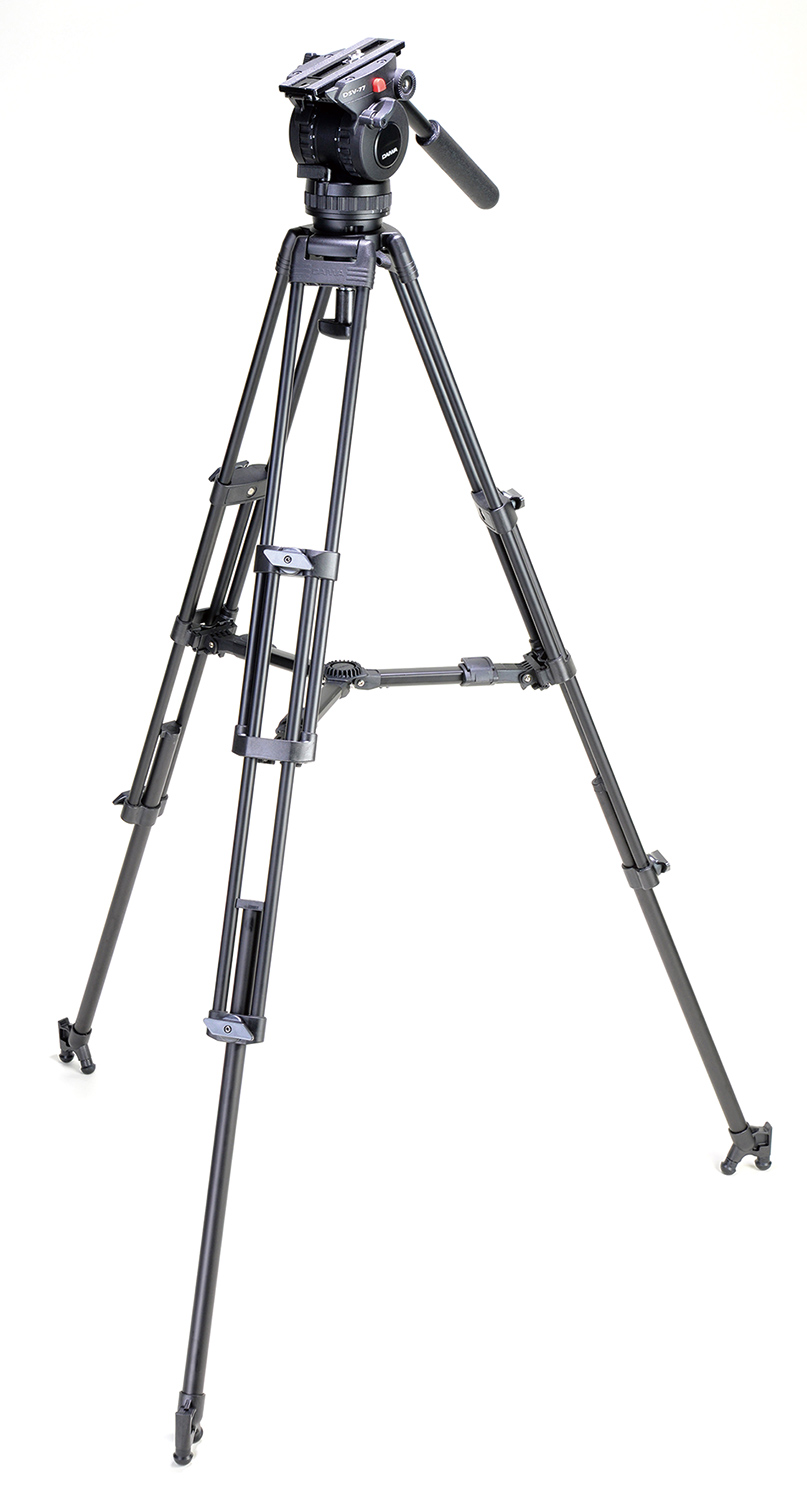

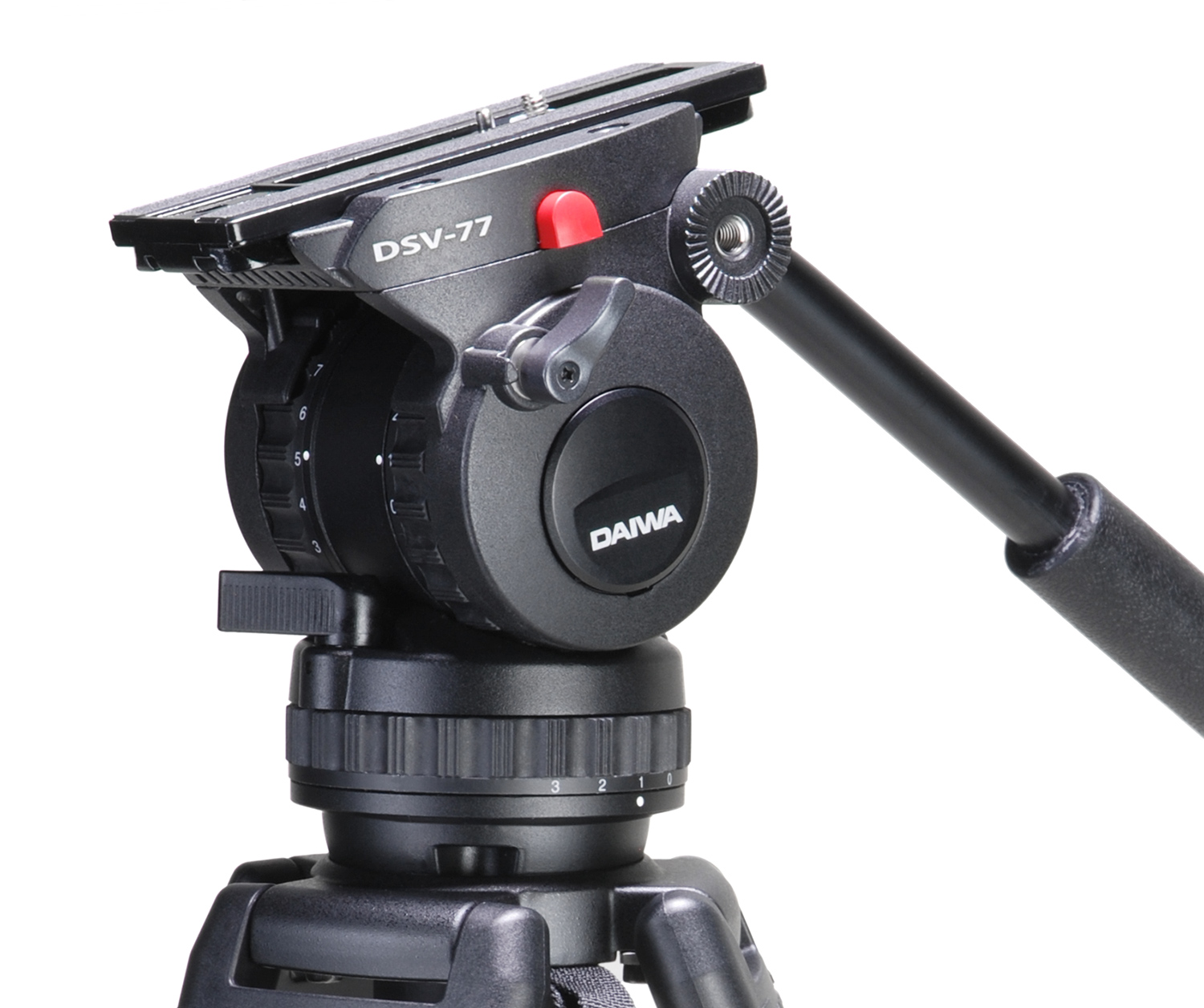

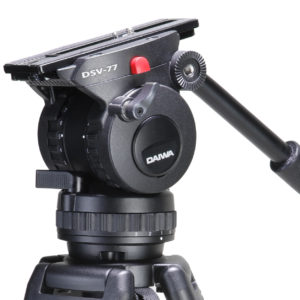

DSV-77
75mm
- Support with load weight up to 7kg
- 7 steps + Free counter-balance
- 2 leg stage
- Mid spreader (telescopic)
- With a bubble level and carrying case
| Bowl Base | 75mm (2.95in) |
| Tilt range | +85° to -75° |
| Payload | 7.0kg (15.43lbs) |
| Max. Height | 1,595mm (62.8in) |
| Folded Length | 830mm (32.7in) |
| Weight (Head + Tripod) | 5.4kg (11.90lbs) |
| Weight (Head only) | 2.3kg (5.07lbs) |
| Leg Section | 2 stage |
| Panning Angle | 360° |
| Counter Balance | 7 steps + free |
| Drag Mode | 3 horizontal and 3 vertical steps + free |
| Camera Attachment Screw | 1/4-20UNC with a video pin |
| Camera Plate | 150mm quick release slide plate |
