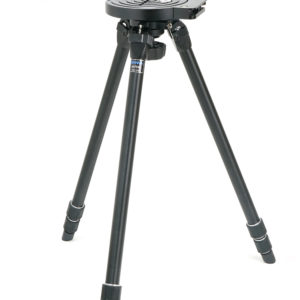

DVS-SA753PTZ
75mm

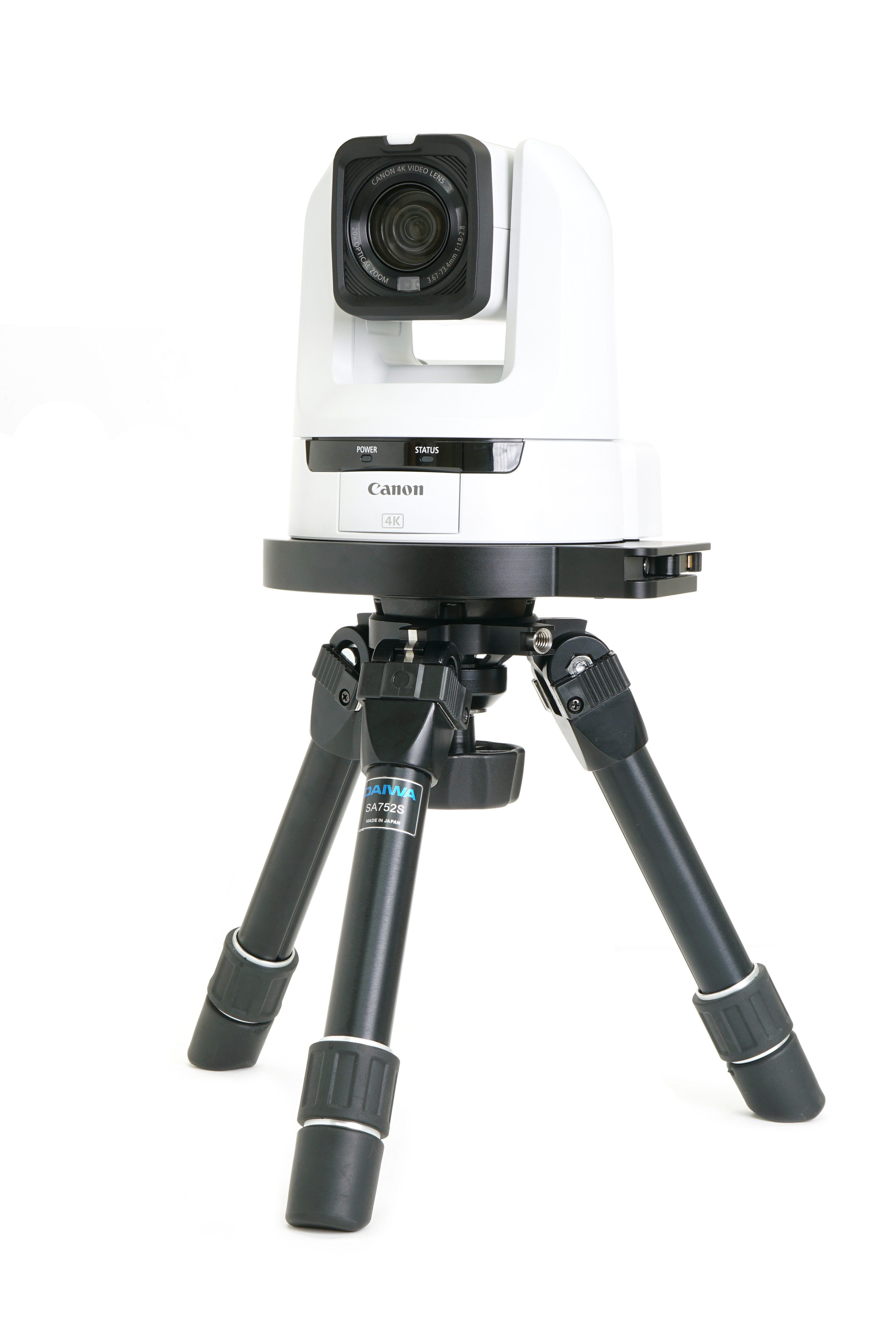

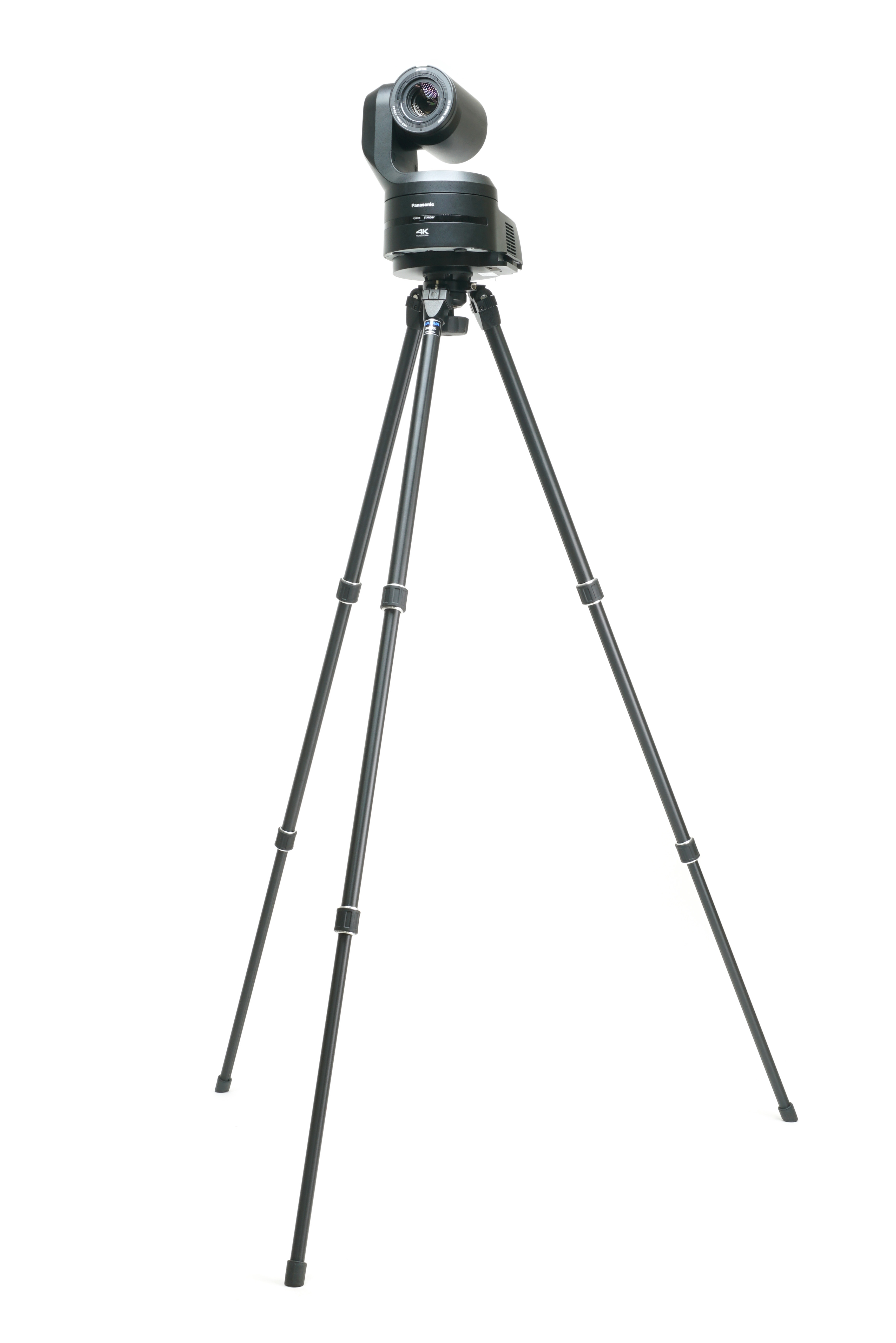

- The DAIWA DVS-SA753PTZ is a unique tripod package that takes maximum consideration of the “ease of use” of the increasingly diverse PTZ cameras.
- “Ease of use” in other words of saying “usability”: that is the ability for the user to operate the camera easily and comfortably in each stage of transportation, installation and operation.
- DAIWA DVS-SA753PTZ is simple, yet packed with our ideas to improve usability, making it the perfect tripod for PTZ cameras.
![]()
-

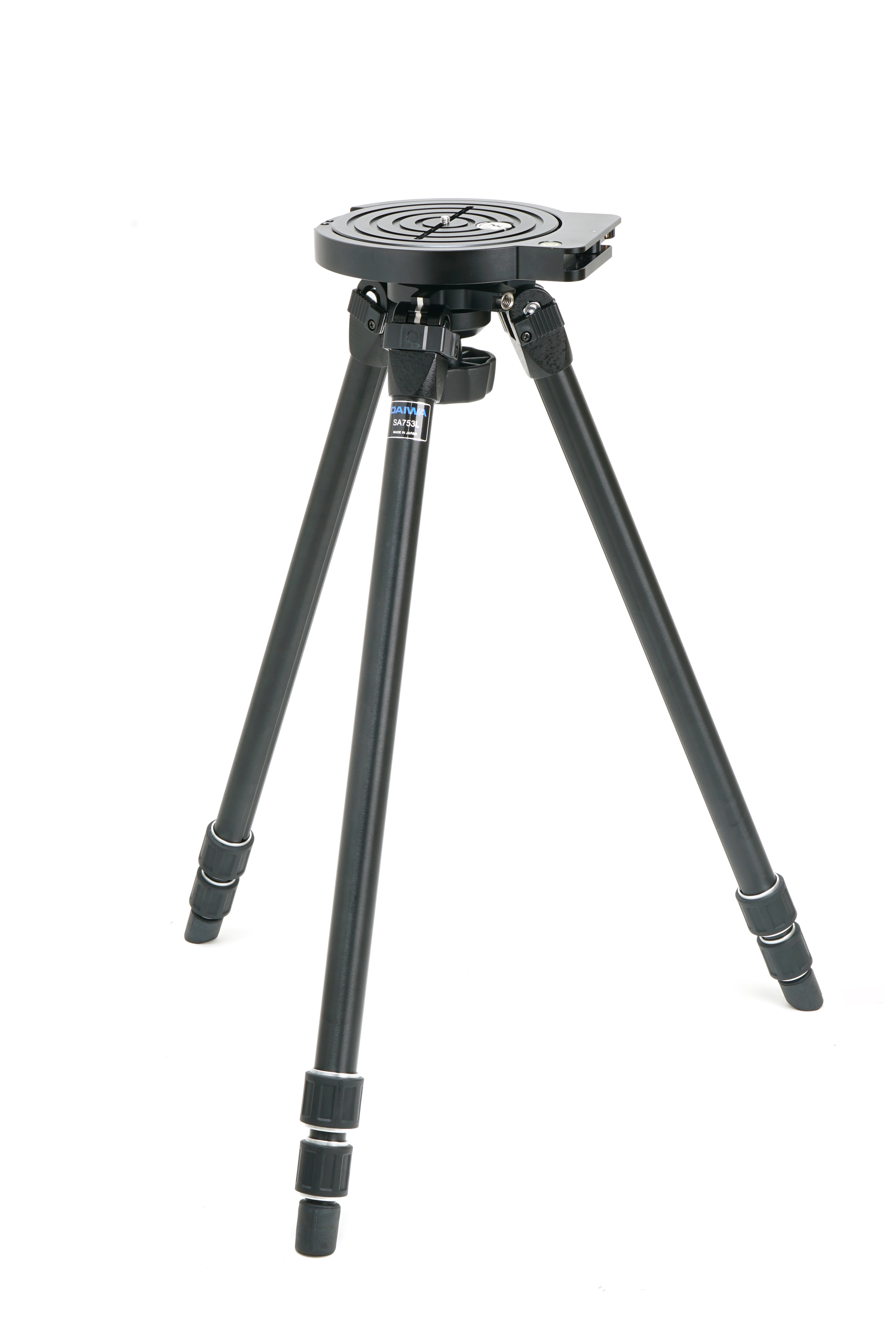

75mm Bowl Base
Uses a 75mm diameter bowl. The platform can be leveled in the same way as a conventional video tripod.
-

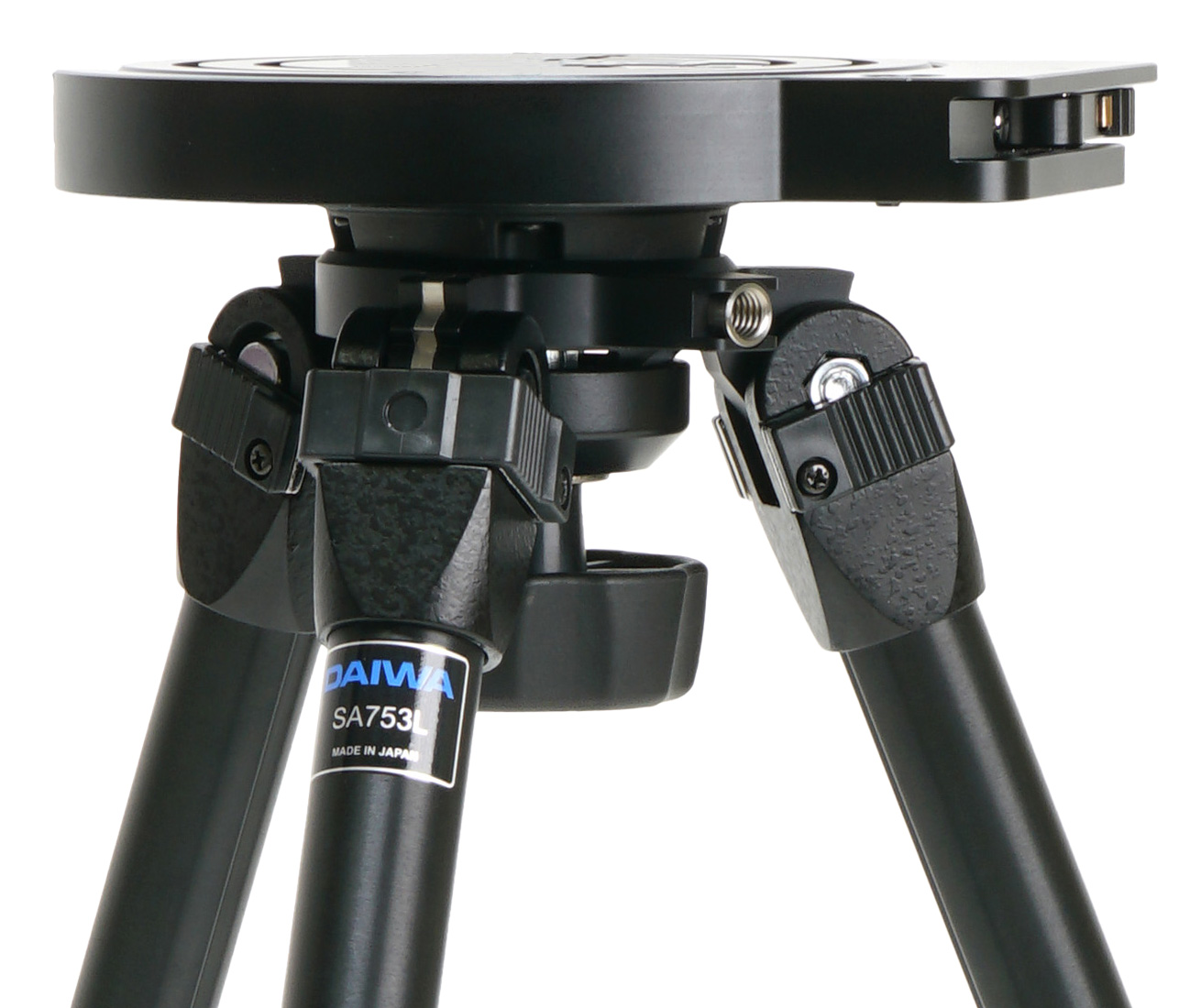

Quick Release Plate
The large, thin disk-shaped plate can be set in the appropriate position according to the size of the camera, and it is stable even when the camera needs to be placed temporarily, so there is no need to worry about it falling over.
-
Illuminated Bubble Leveler
The platform is equipped with a bubble leveler, which is essential when adjusting the level. This bubble leveler can be illuminated as needed, which is a useful feature when setting up the tripod in dark places.
-
Double Action Locking Mechanism
The camera can be easily attached and detached by opening the lock lever. Despite its strong locking force, it does not require much force to operate the lever. A safety mechanism is included, so the camera cannot be removed without a two-step operation. (see also video)
| Max. Load Capacity | 10 kg (22.0 lb) |
| Bowl Size | 75 mm |

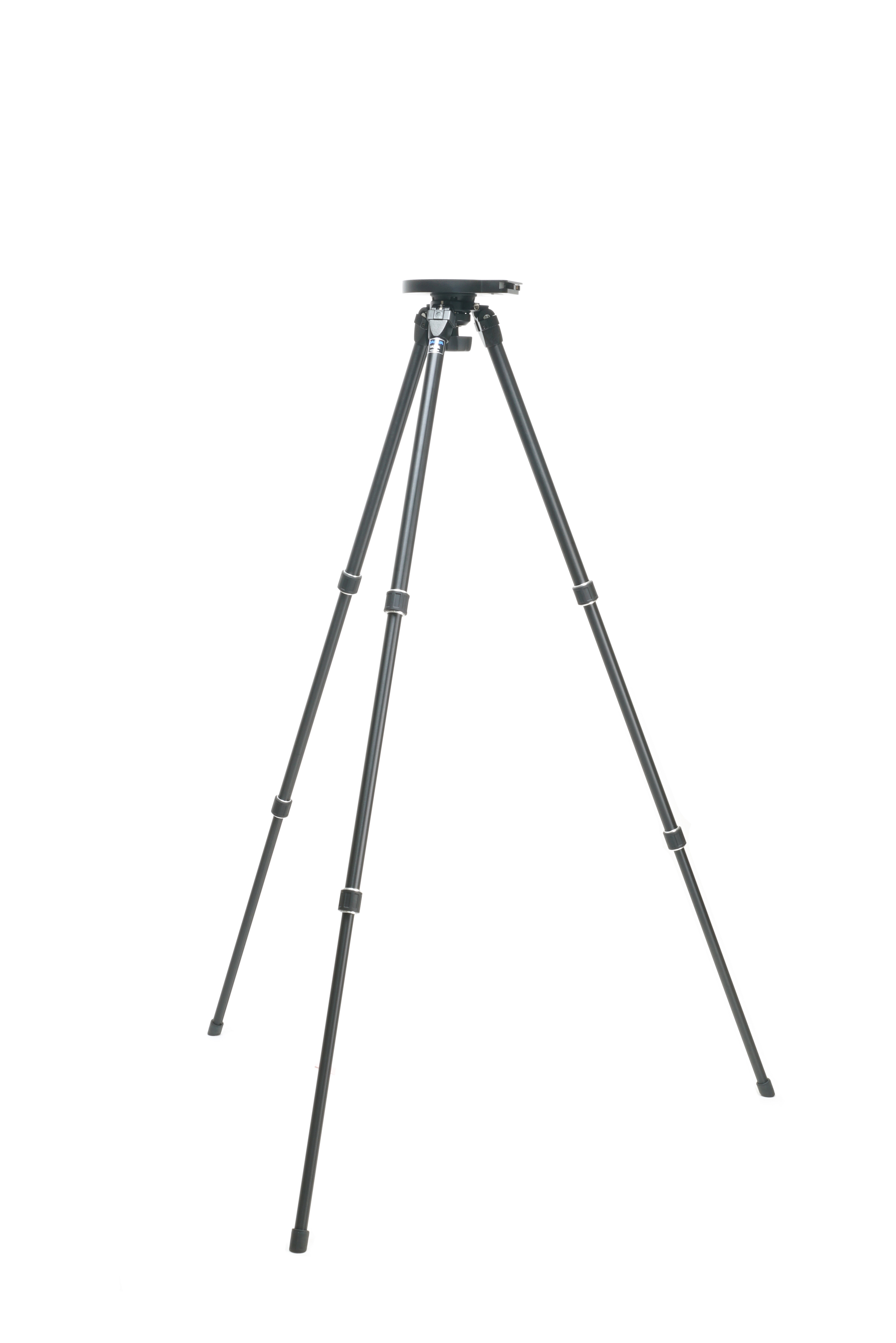

| Mix. Height | 1,425 mm (56.1 in) |

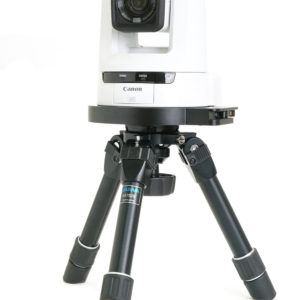

| Min. Height | 210 mm (8.26 in) |
| Folded Length | 680 mm (26.8 in) |
| Leg Angle | 3 steps (20, 50 & 75°) |
| Leg Type | Single Pipe |
| Leg Lock Type | Twist Lock |
| Leg Pipe Dia. | 28mm |
| Tripod Stage | 2 Stages |
| Leg Material | Aluminum |
| Weight | 3.23 kg (7.12 lb) |
