K-10
The K-10 is an aluminum tripod with excellent mobility that achieves a load capacity of 10 kg while weighing only 2.1 kg.
A rack and pinion gear, which is widely used in automobiles, microscopes, telescopes and etc., is used for the vertical movement of the center column, and the mounted equipment can be finely adjusted to desired height.
Equipped with a “friction adjustment mechanism” that allows user to adjust the resistance to the movement of the center column according to the equipment weight.
-

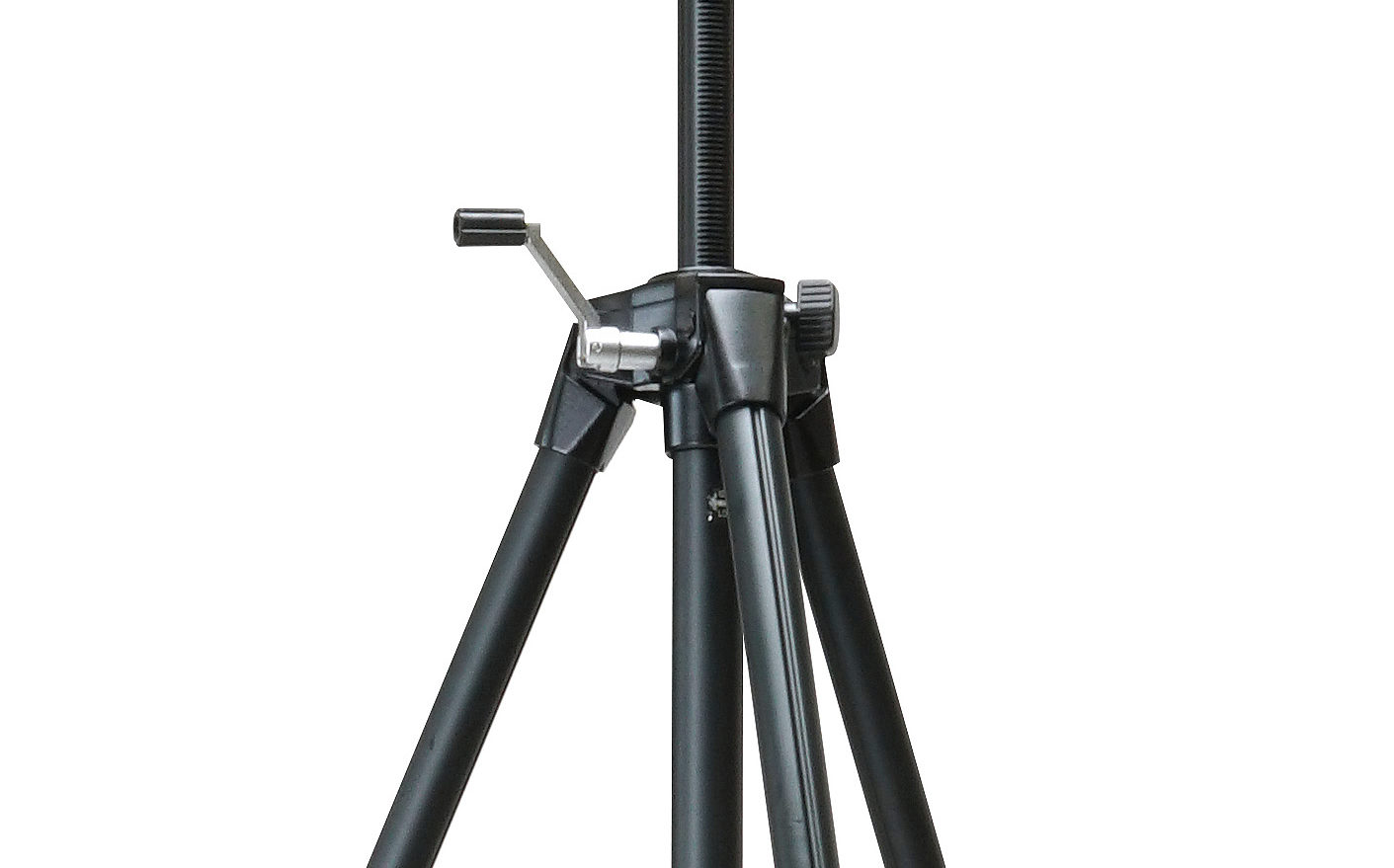

Fast and Easy center column heigh adjustment
"Rack & Pinion" center column utilizes a geared movement for easy and precise height adjustments.
-

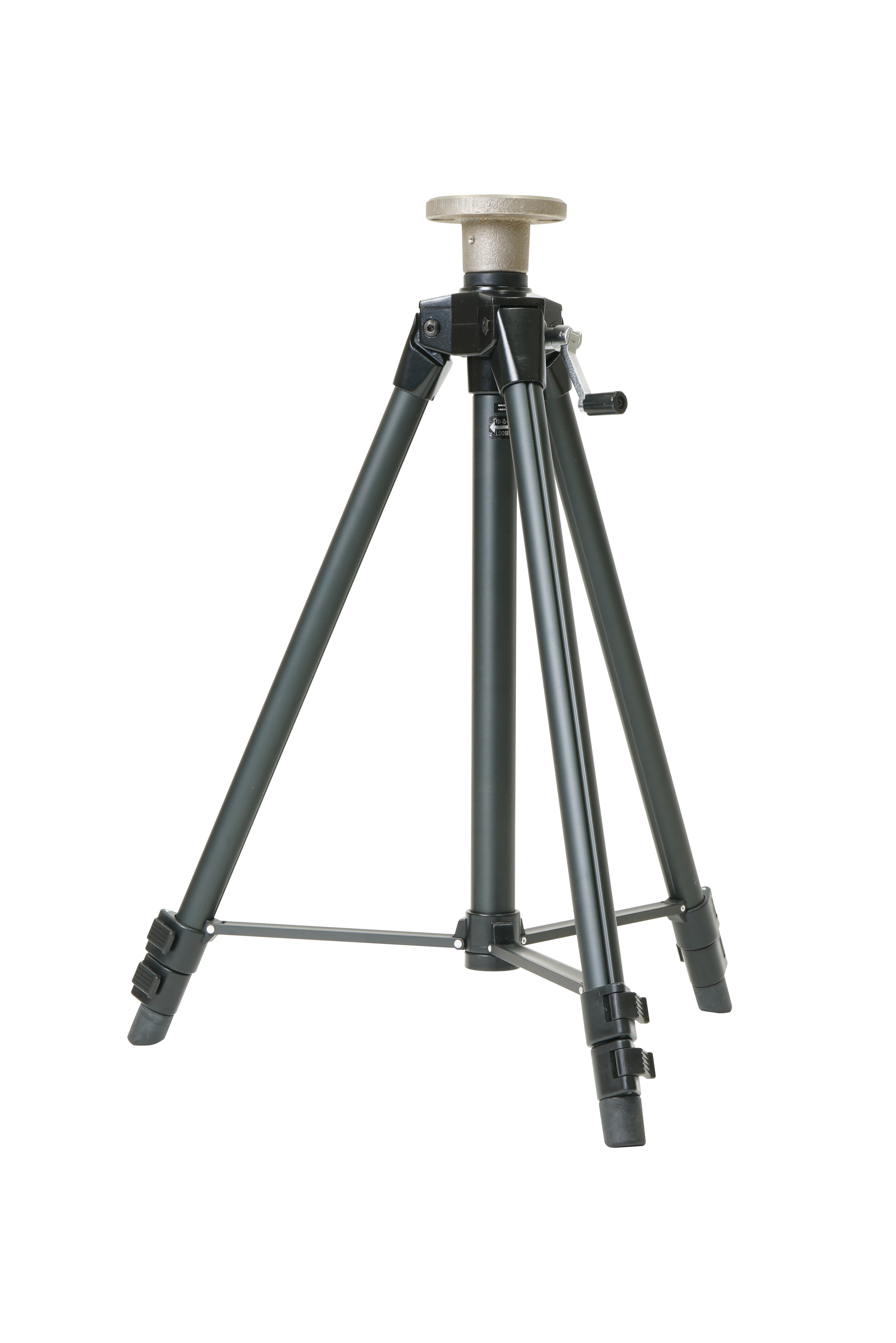

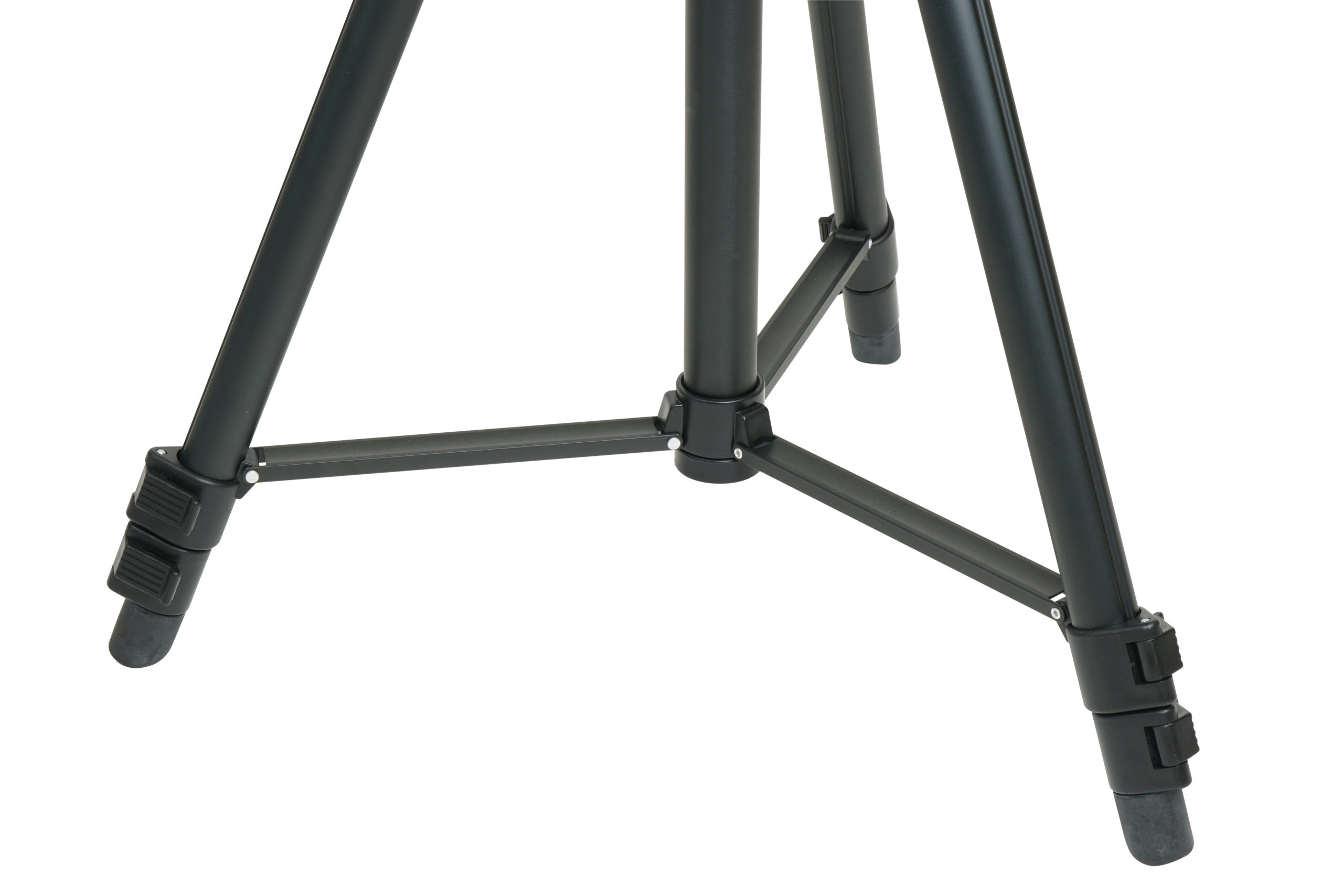

Leg Brace Mechanism for increased stability
This feature improves stability during setup and it also minimizes the tripod's tendency to twist under heavy loads.
-

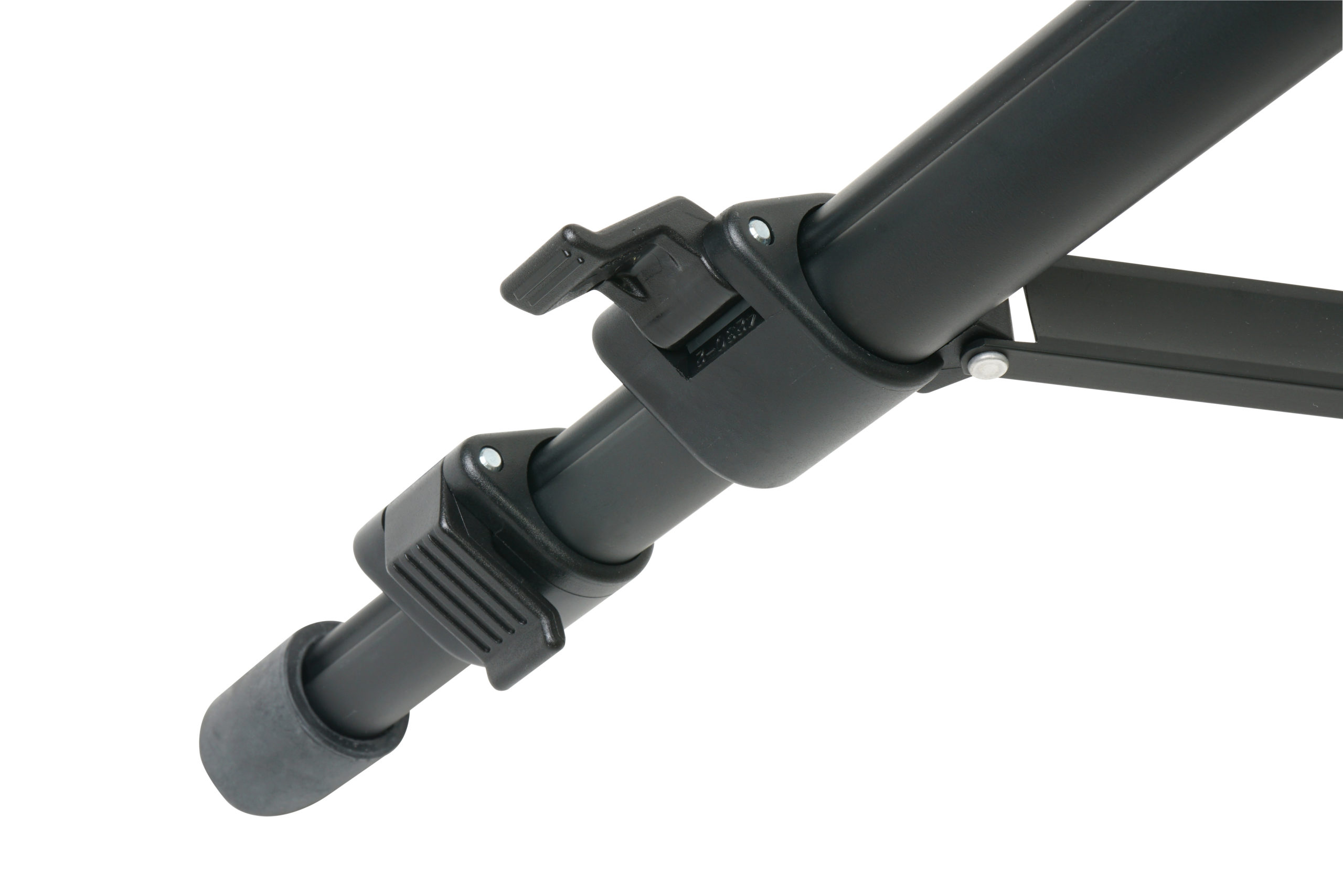

Lever-type leg lock for fast and safety leg adjustment
The advantage of lever-type leg locks is not only quick set-up, but also improved job site safety, as the operator can visually confirm that the legs are securely locked during extension and retraction.
-

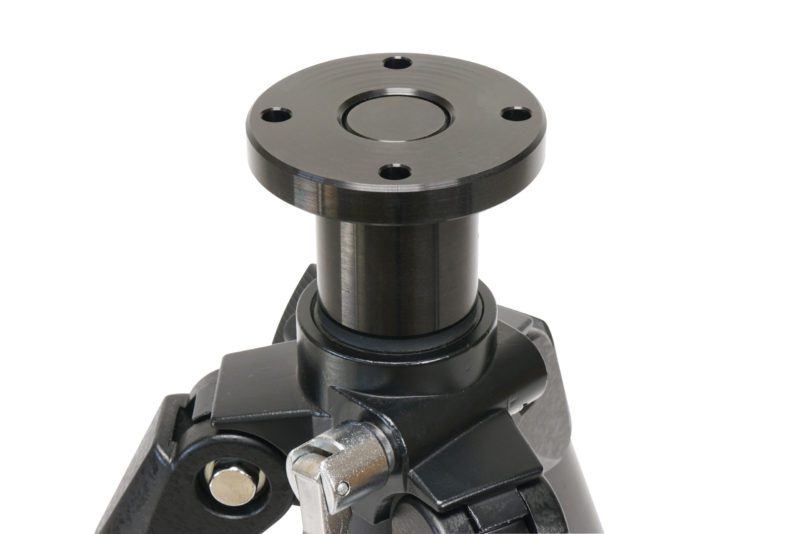

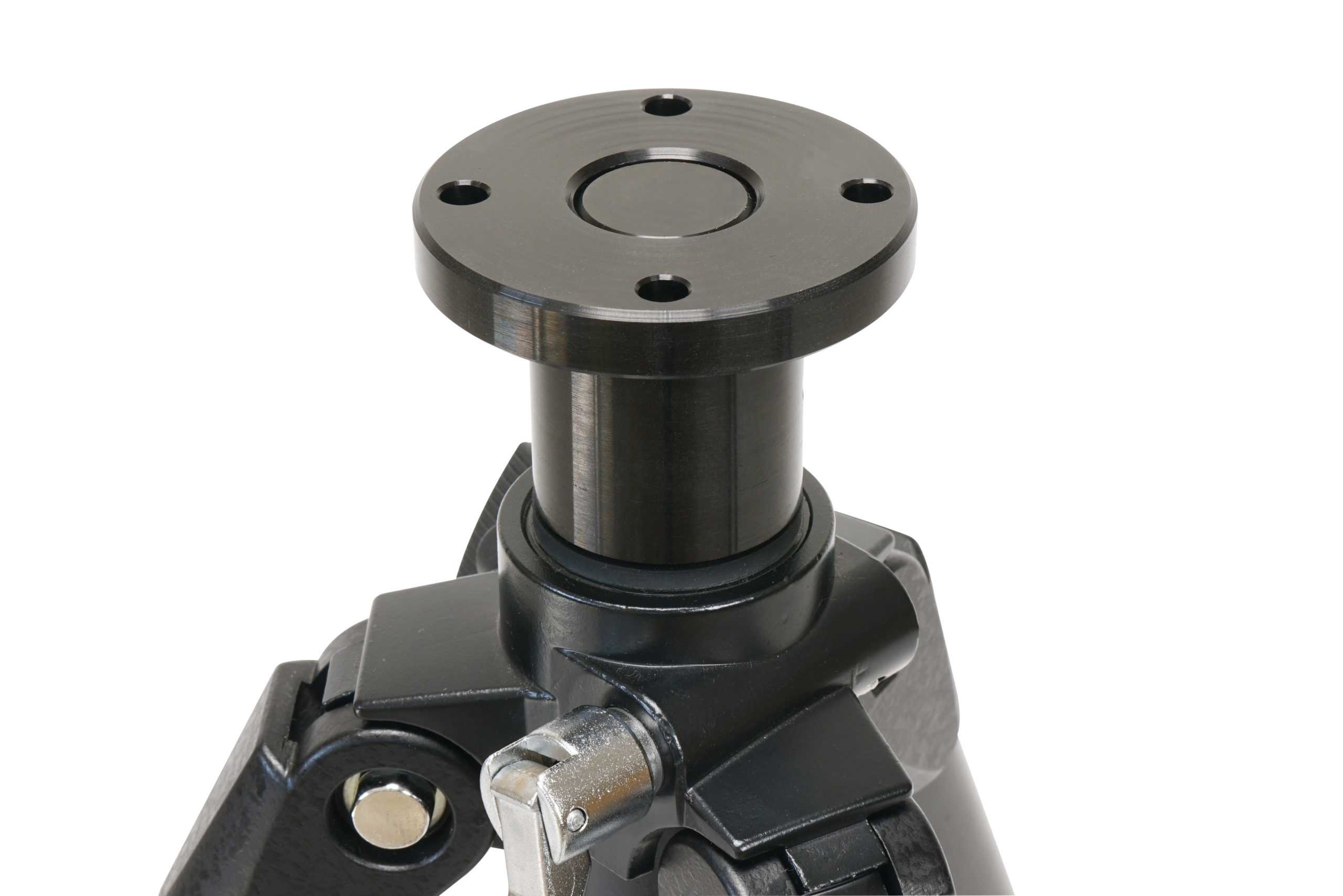

Heavy-duty mounting base
Precise CNC machined aluminum mounting base is used to provide a sturdy base while working with heavy equipment. *Attachable Aluminum Plate available (Optional)
| Load Capacity | 10 kg (22 lbs) |

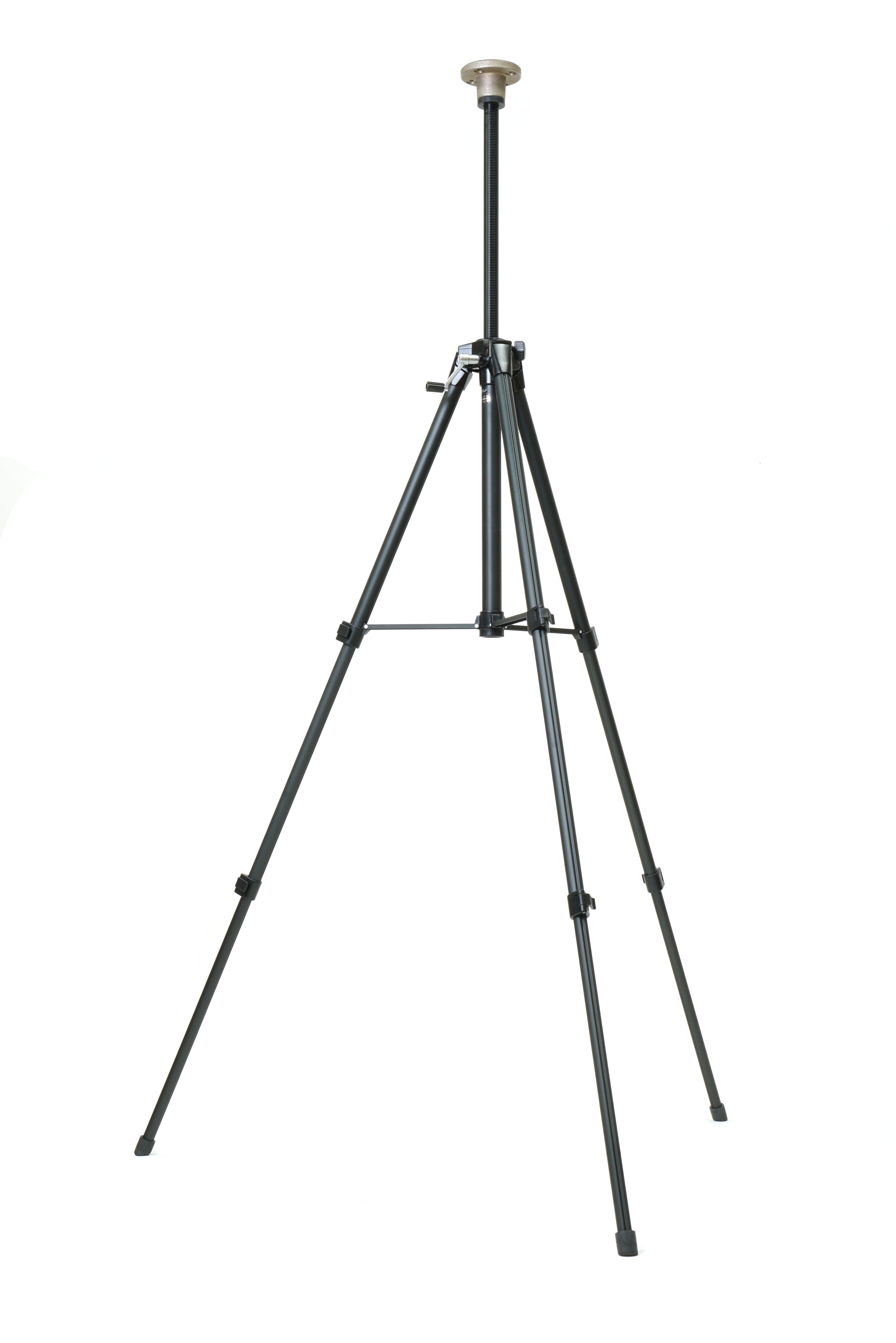

| Max. Height | 1,550 mm (61.0 in) |
| Min. Height | 535 mm (21.0 in) |
| Max. Center Column Extension | 390 mm (15.3 in) |

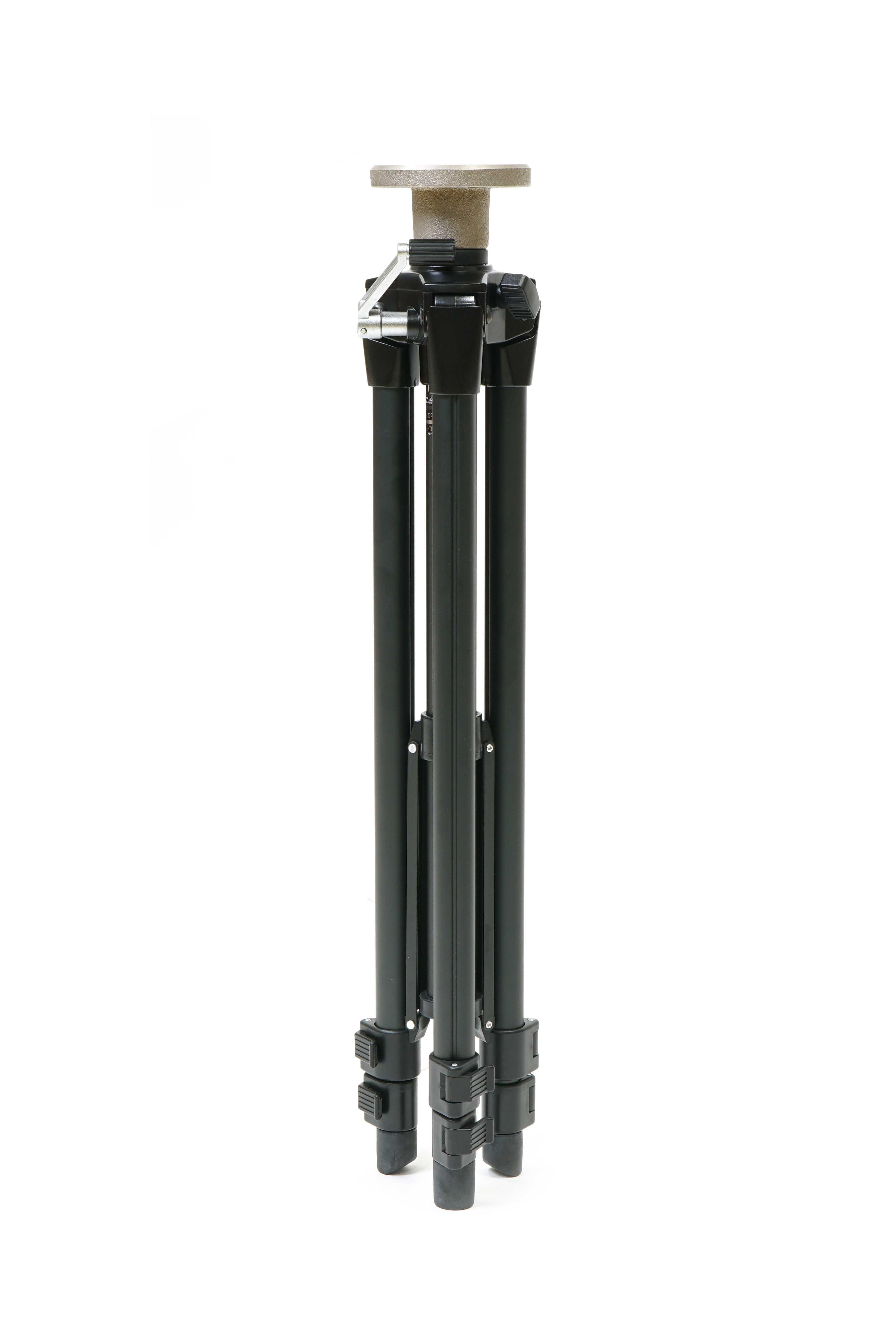

| Folded Length |
575 mm (22.6 in) |
| Max. Leg Diameter & Section |
23 mm / 3 sections |
| Weight | 2.1 kg (4.6 lbs) |
| Type of Center Column Elevation | Rack & Pinion Gear |
| Leg Lock Type | Lever Lock |
