K-30

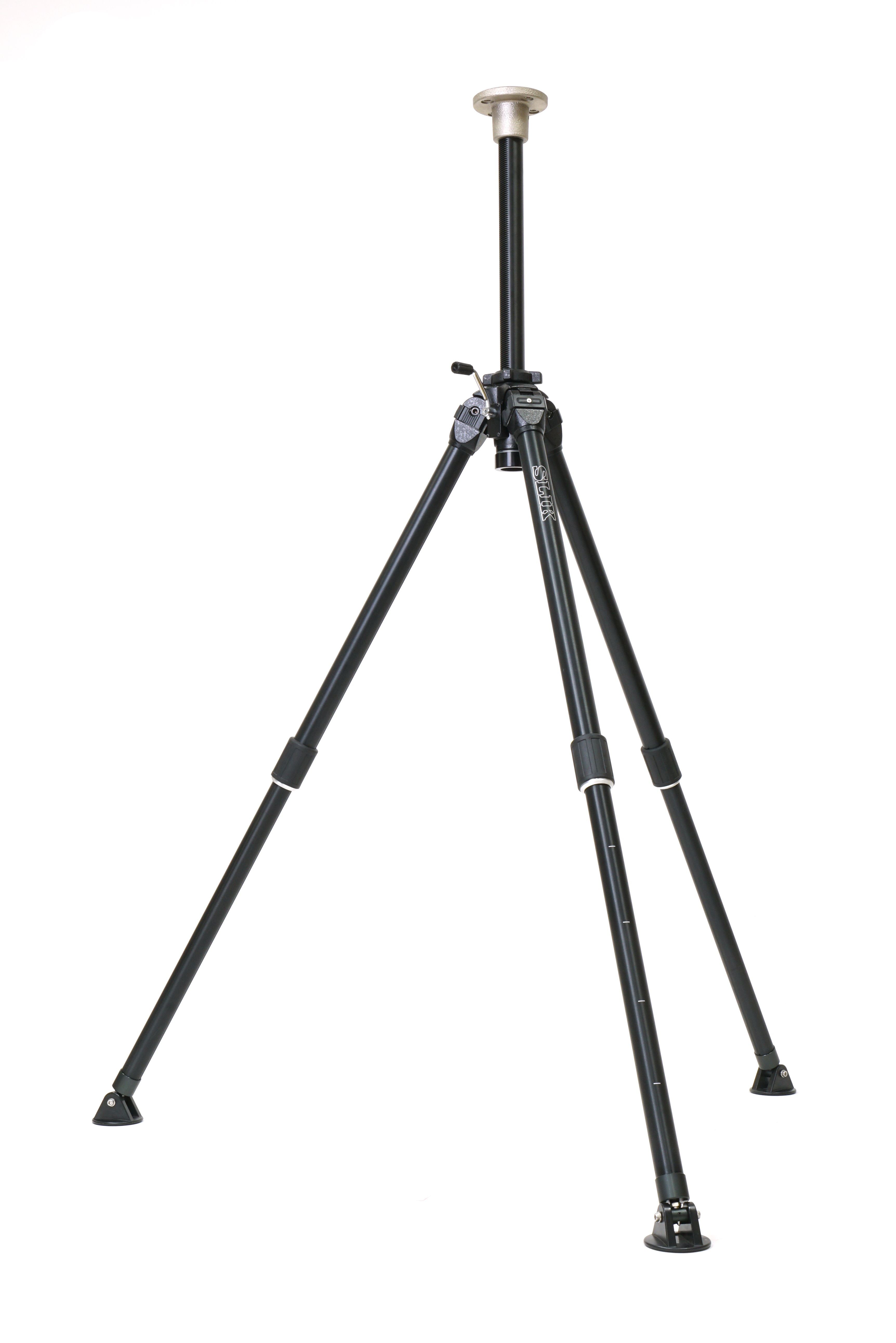

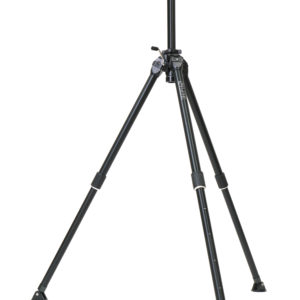

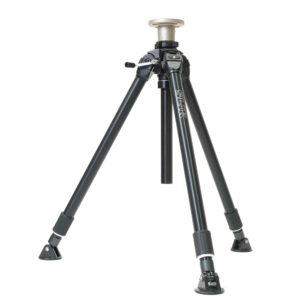

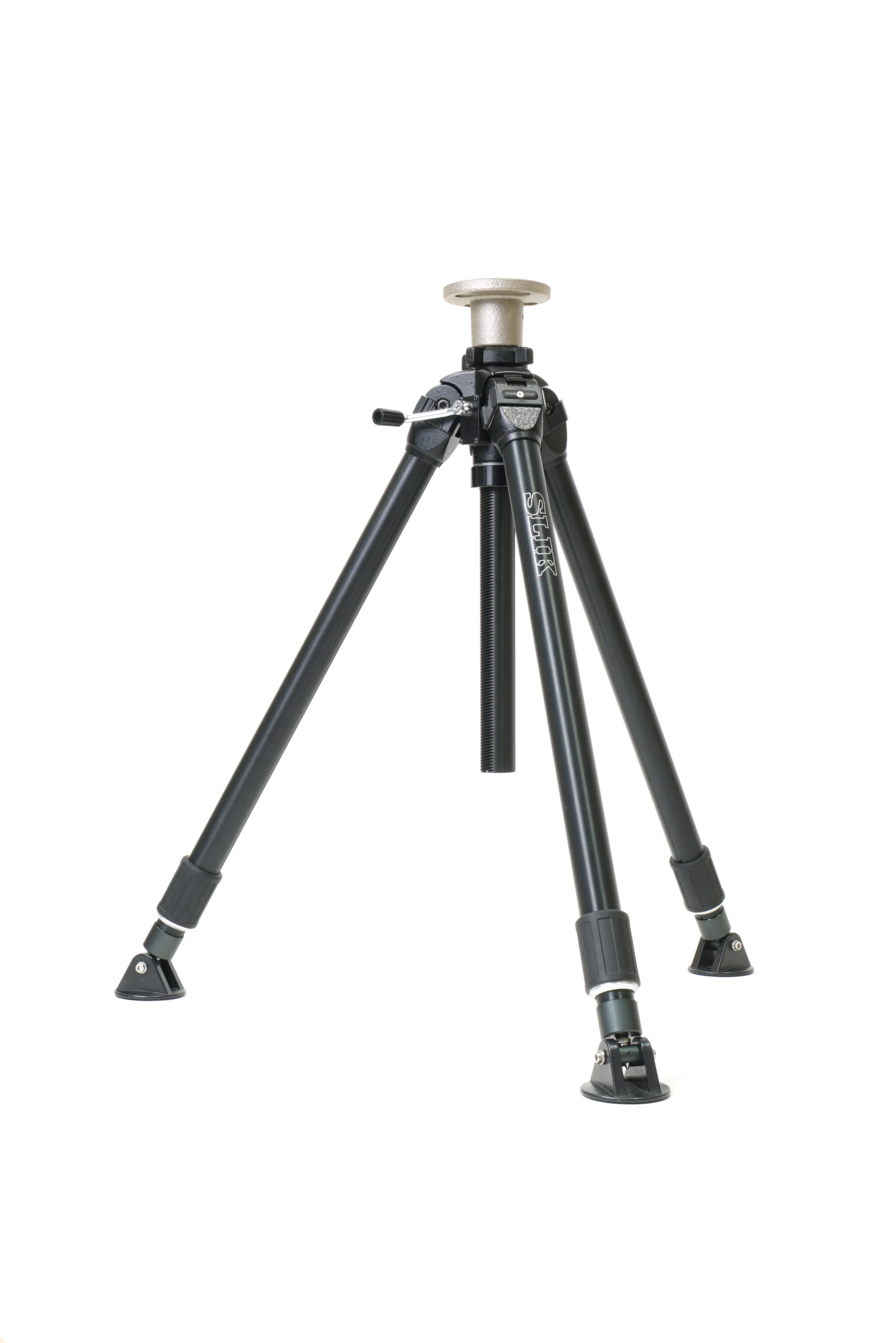

The K-30 is a tripod with excellent rigidity and stability using 36mm aluminum pipe, which is the largest diameter in the lineup.
A worm gear that combines reliability and safety, is adopted for the vertical movement mechanism of the center column, it is possible to safely and easily push up an equipment of up to 30kg to desired height.
The leg opening width can be adjusted in 3 angles, and the large contact surface and rotatable leg end stably hold the equipment even on uneven terrain.
-

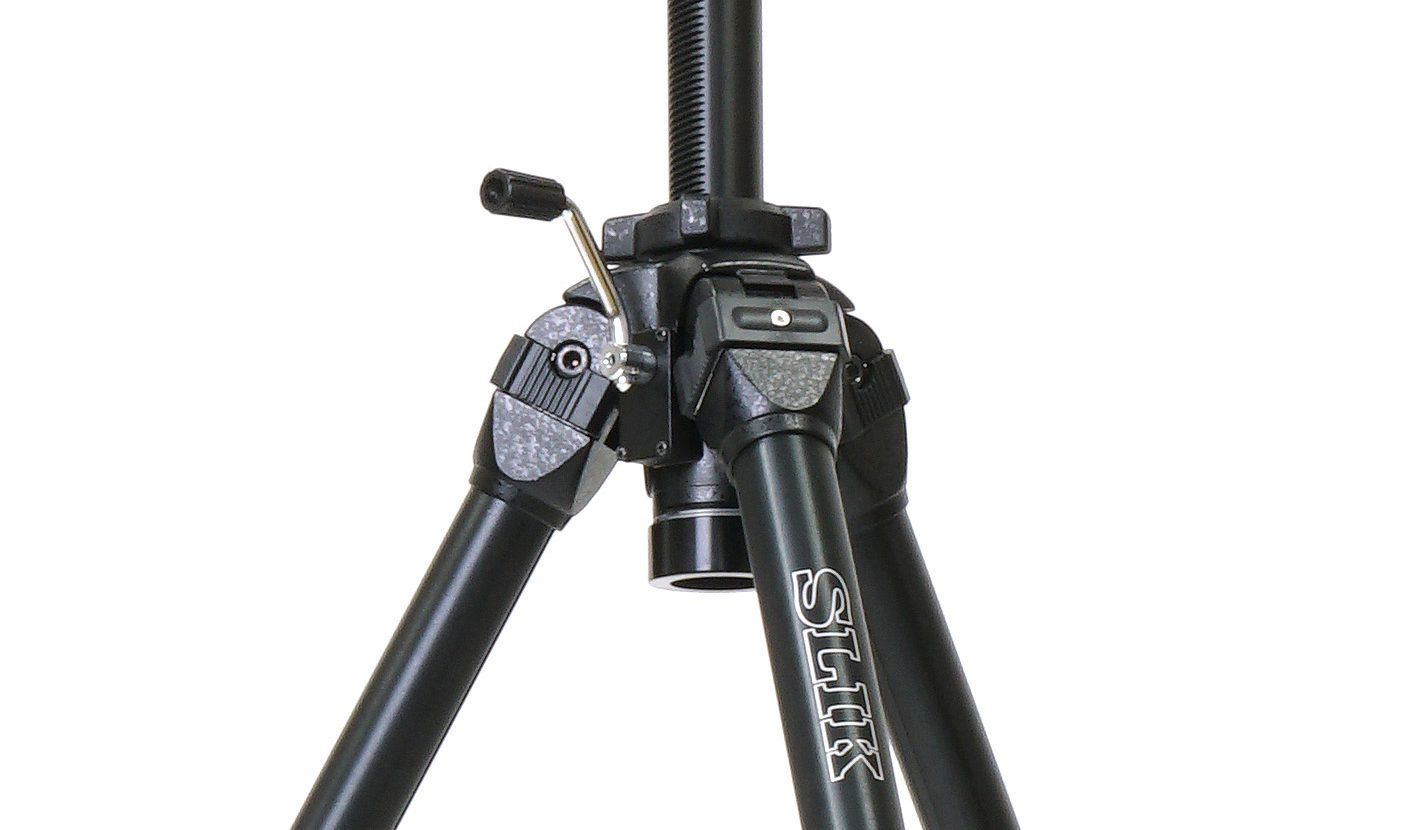

Worm gear mechanism for a safe set-up.
The center column mechanism uses a worm gear system that has a long-established reputation. Not only it allows easy and smooth height adjustment even with a heavy equipment on, but also prevents accidental falls during height adjustment to avoid damage to mounted equipment.
-

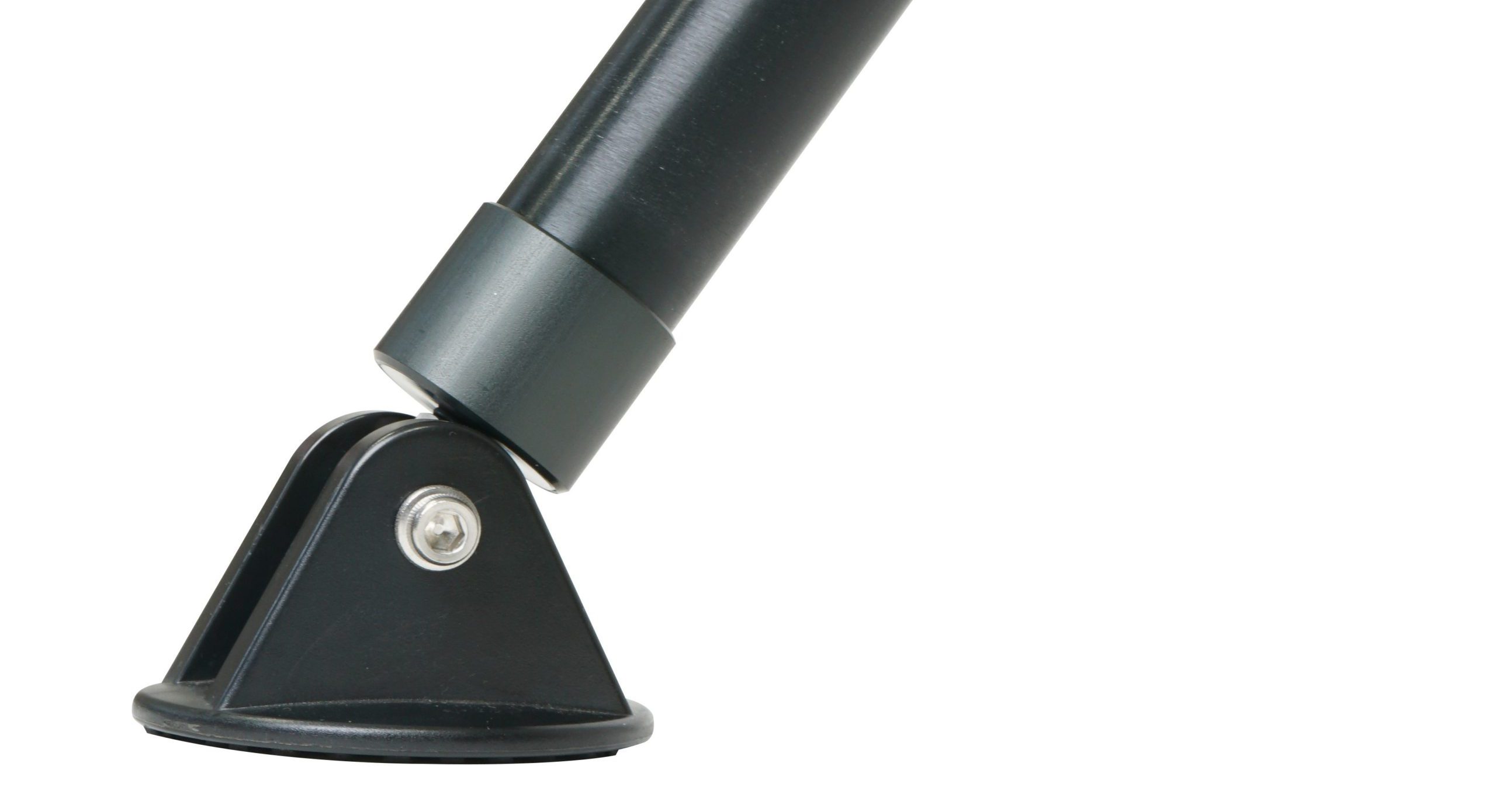

Non-slip foot pad to minimize misalignment after set up
70mm diameter non-slip foot pad covers a large portion of the ground surface for stable equipment installation.
-

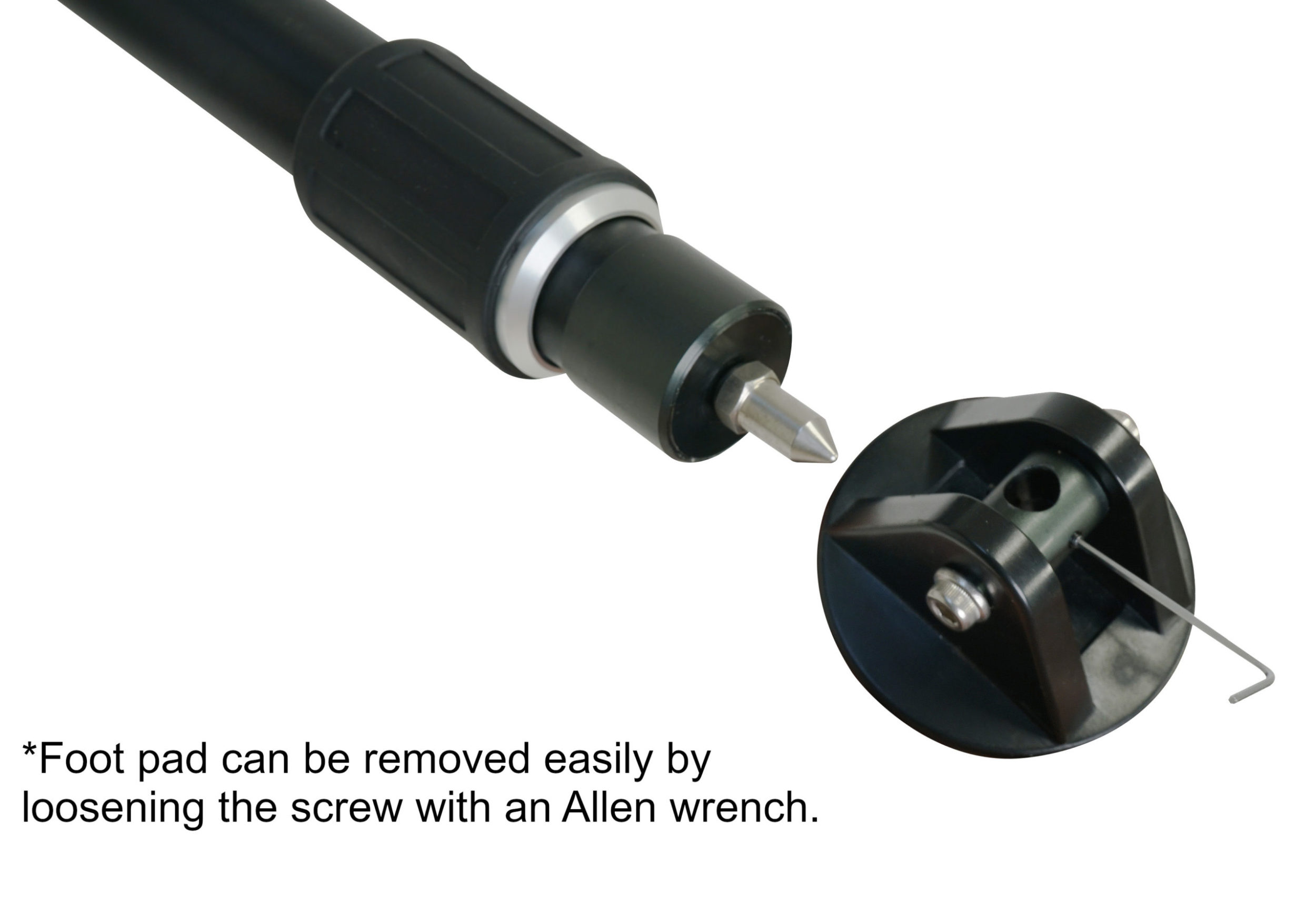

2-way leg tip to adapt with different set-up
K-30 leg tip can be switch easily from a 70mm diameter non slip foot pad to a spike leg tip which can be very convenient when working on unstable surfaces such as soil or sand ground.
-

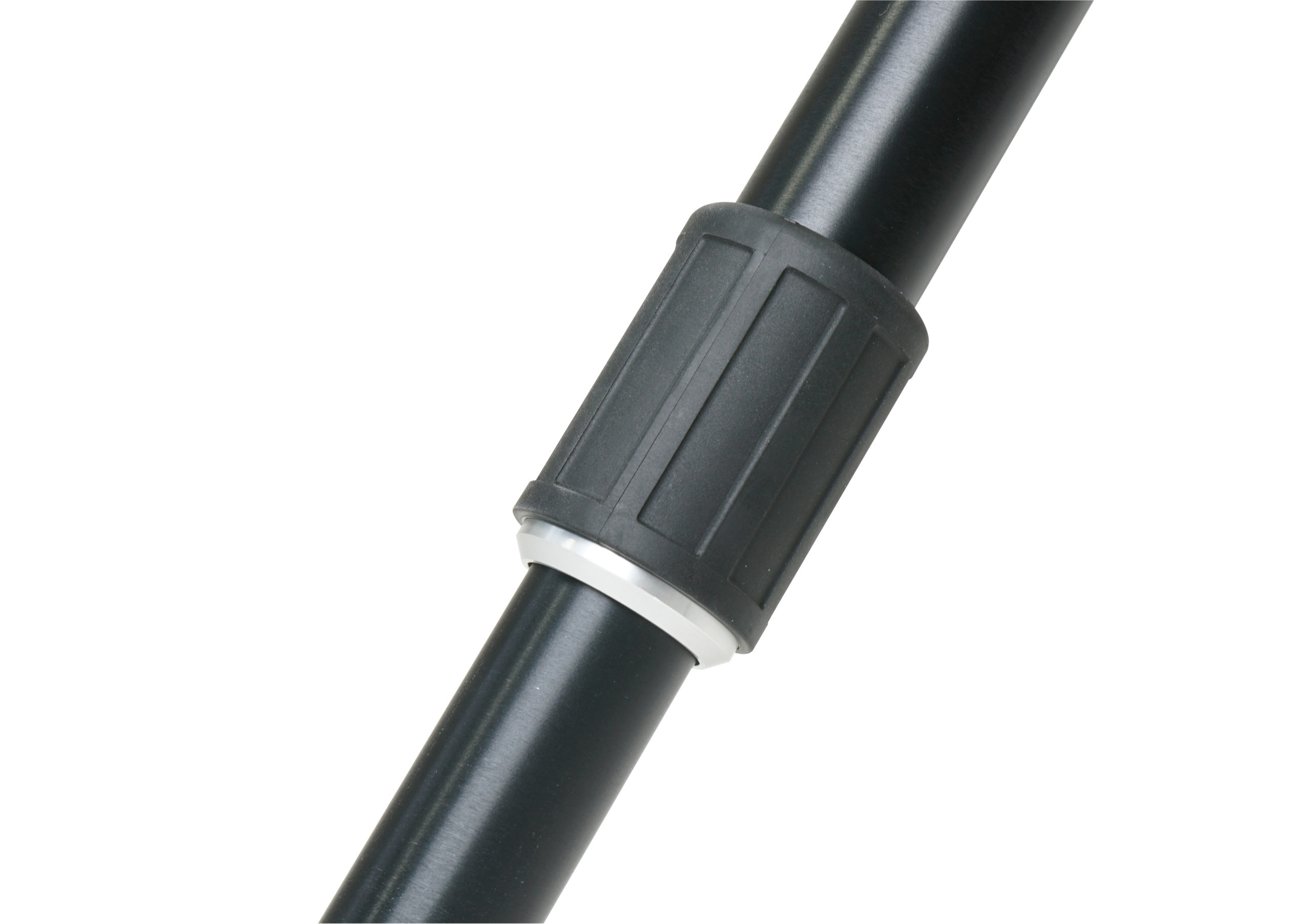

Easy-to-grip, large integral rubber molded leg lock nut
This ergonomic leg lock nut is designed for easy twisting even with gloves on to increase work efficiency
-

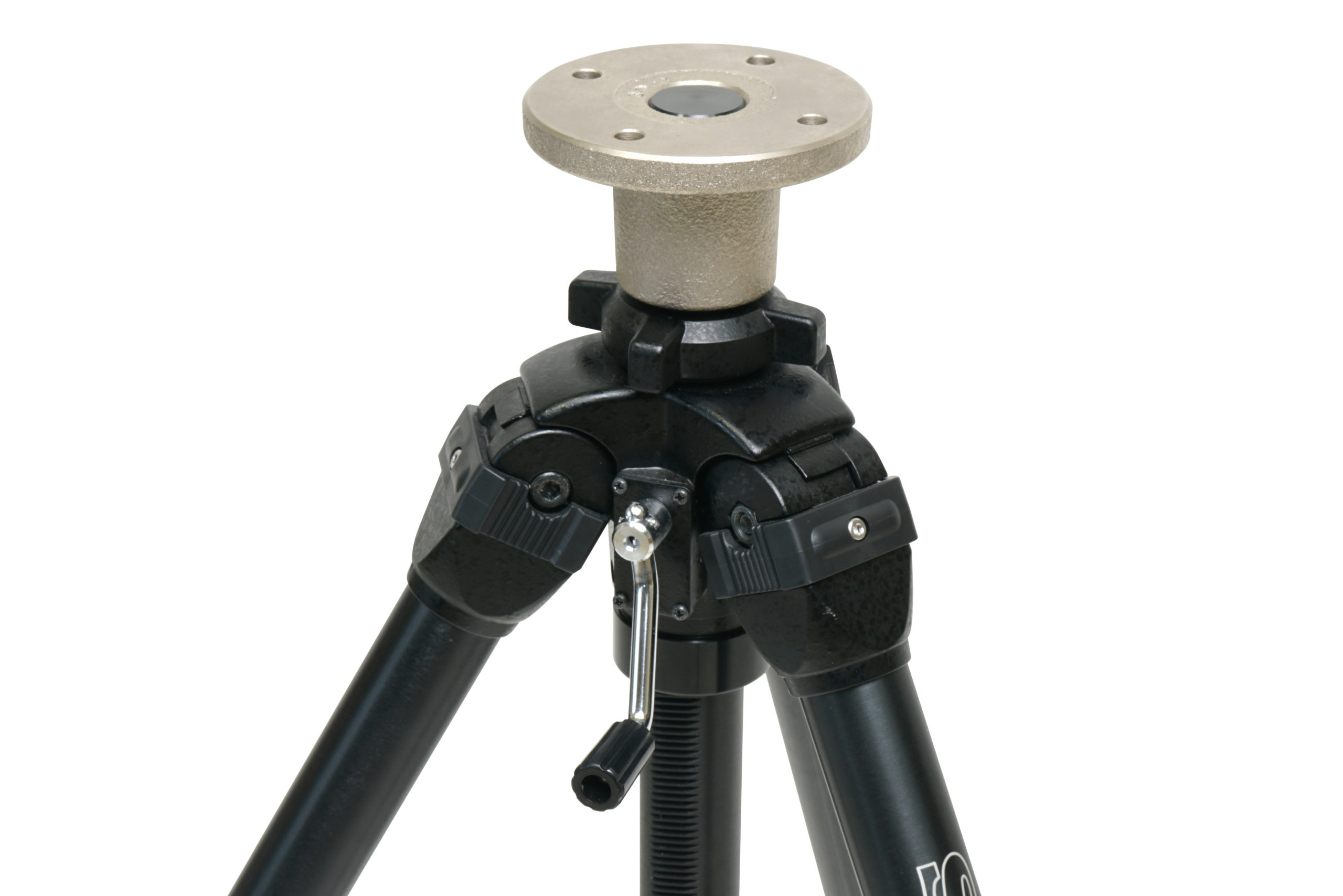

Reinforced mounting base
Strong cast metal mounting base is used to provide a sturdy base while working with heavy equipment. *Attachable Aluminum Plate available (Optional)
-

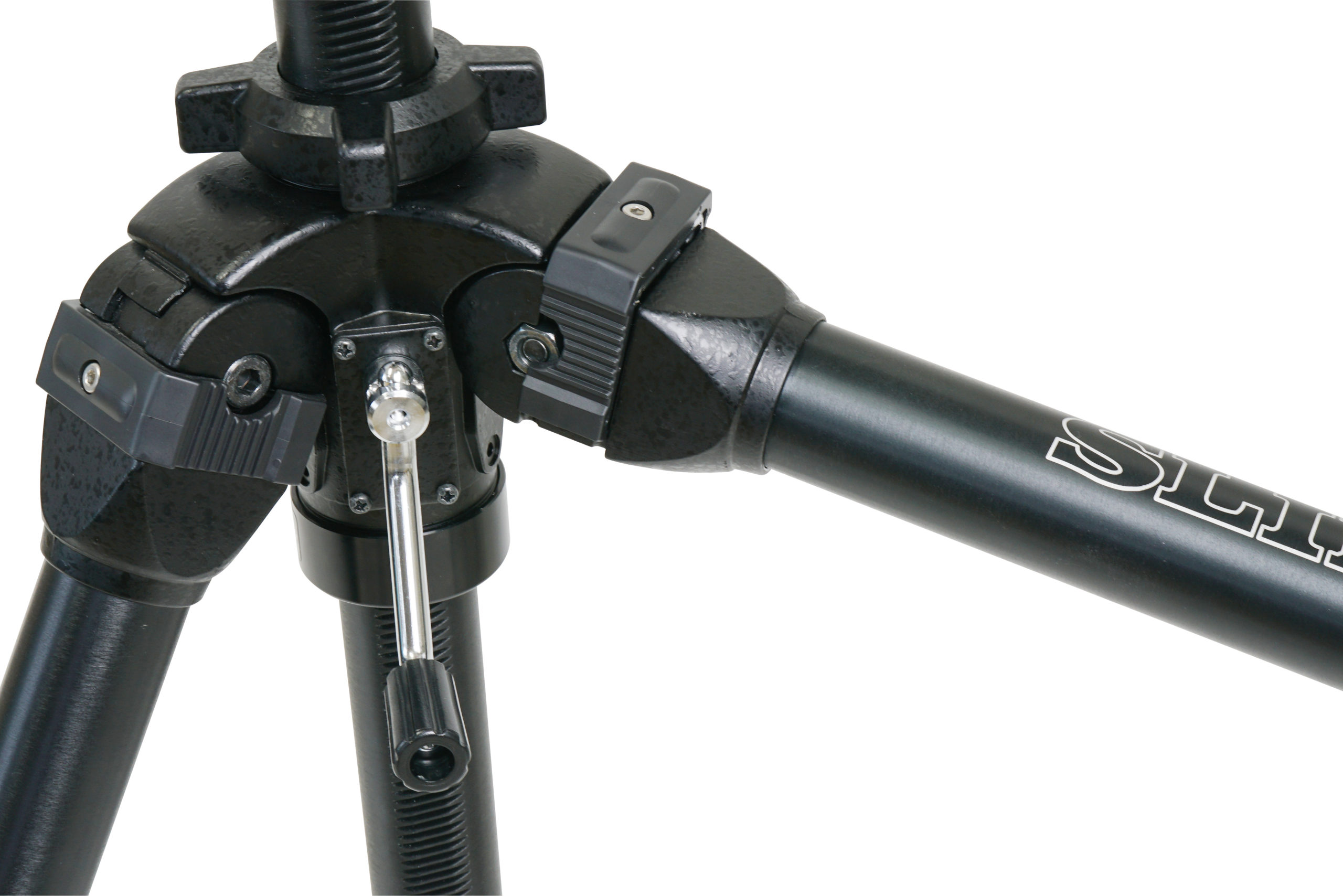

3-steps leg angle adjustment
The minimum heigh above the ground can go as low as 490mm, making it easier to work in a low position.
| Load Capacity | 30 kg (66 lbs) |
| Max. Height | 1,435 mm (56.5 in) |
| Min. Height | 490 mm (19.3 in) |
| Max. Center Column Extension | 285 mm (11.2 in) |

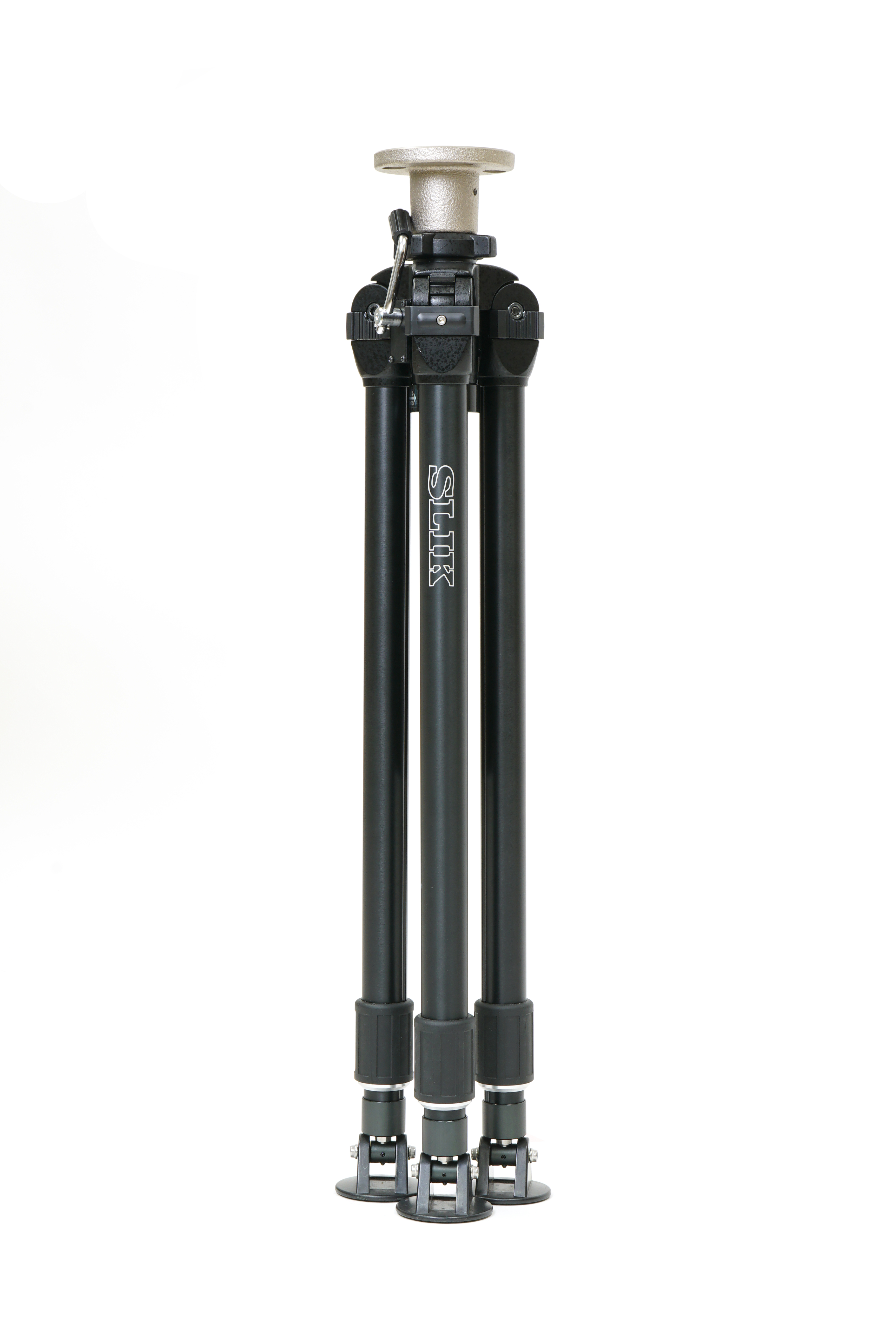

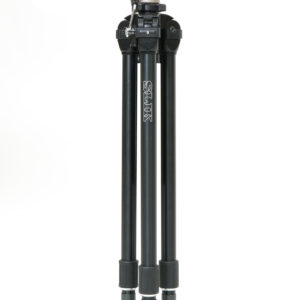

| Folded Length |
810 mm (31.9 in) |
| Max. Leg Diameter & Section |
36 mm / 2 sections |
| Weight | 5.0 kg (11.0 lbs) |
| Type of Center Column Elevation | Worm Gear |
| Leg Lock Type | Twist Lock |
